Victaulic FireLock EZ Style 009N Coupling: Applications, Sizes & Selection Guide

The Victaulic FireLock EZ Style 009N is a rigid coupling used in fire protection piping systems. It helps join grooved pipes securely and is available in different sizes. Choosing the right coupling depends on pipe size, pressure, compatibility, gasket, and application requirements.

Fire protection piping needs strong connections to help keep the system safe and reliable. These connections need to handle the demands of fire protection systems while keeping the pipes firmly joined. The Victaulic FireLock EZ Style 009N is a rigid coupling made for joining grooved pipes in fire protection systems. Its Installation-Ready design helps make pipe installation simpler, while its rigid connection keeps pipes firmly joined. Available in different sizes and pressure ratings, the coupling can be used for various fire protection needs. Therefore, choosing the right size and type depends on the pipe, pressure, gasket, and application.

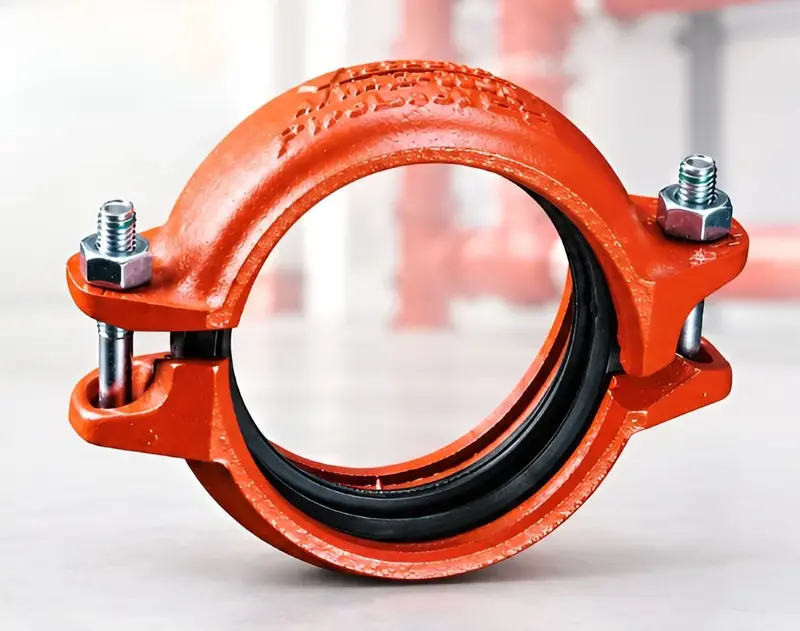

What Is the Victaulic FireLock EZ Style 009N Coupling?

The Victaulic FireLock EZ Style 009N is an installation-ready rigid mechanical coupling designed specifically for joining grooved carbon steel pipes in fire protection systems. It connects two prepared pipe ends and keeps them firmly joined without welding or threading. The coupling comes pre-assembled, which helps make installation easier and saves time during pipe assembly. Its rigid design also helps limit pipe movement after installation. This makes the Style 009N a useful option for fire sprinkler and other fire protection piping systems that need strong and secure pipe connections.

Key Features of Victaulic Style 009N

The Victaulic Style 009N has several useful features that make pipe joining easier and provide a strong connection for fire protection systems.

• Installation-Ready Design: The Style 009N comes pre-assembled with the housing, gasket, bolts, and nuts already in place. Installers can place it over the grooved pipe ends without taking the coupling apart. This reduces loose parts and helps save installation time.

• Rigid Pipe Connection: The coupling creates a firm and rigid connection between the pipes. It helps restrict axial and angular movement, which makes it suitable for pipe sections that need to remain securely in position.

• Grooved Mechanical Joining: The coupling connects pipes through pre-formed grooves near their ends. The housing fits into these grooves, while the gasket helps seal the joint. This provides an alternative to welding and threading.

• Fire Protection Application: The Style 009N is made for fire sprinkler and fire protection piping systems. It can be used in wet and dry systems where a strong, rigid connection is needed. Its design helps keep the pipes securely joined and properly aligned during operation.

Where to Use the FireLock EZ Style 009N: Applications

The Style 009N is designed for fire protection piping where a strong and rigid connection is needed. Its design makes it suitable for different types of sprinkler and fire suppression systems.

• Fire Sprinkler Systems: The Style 009N can be used in fire sprinkler systems, including main lines, headers, and branch lines. Its rigid connection helps keep the connected pipes firmly in place during system operation.

• Wet and Dry Pipe Systems: The coupling is suitable for wet and dry fire protection systems within its specified ratings. It can be used for applications requiring vacuum service when permitted by the product specifications.

• Structural Support Alignment: The rigid design helps restrict axial and angular movement of the connected pipes. This helps keep fire protection piping properly aligned and securely positioned, especially in systems where pipe movement needs to be controlled.

Style 009N Sizes and Pressure Ratings

The FireLock EZ Style 009N Coupling comes in different sizes to suit various fire protection piping needs. The table below shows its available size range and maximum pressure rating.

Product	Size Range	Pressure Rating
FireLock EZ Style 009N Coupling	1¼” to 12″ / DN32 to DN300	Up to 365 psi / 2517 kPa / 25 bar

When choosing a coupling, check the pipe’s actual outside size and make sure it matches the coupling. Also, check the pressure rating needed for the system. This helps make sure the coupling fits well and can handle the system safely.

How to Select the Right FireLock EZ Style 009N Coupling

Choosing the right FireLock EZ Style 009N Coupling is important for making a safe and strong pipe connection. However, the selection is not difficult when you check a few basic things, such as the pipe size, pressure, gasket, and application.

• Check the Pipe Size: First, check the size of the pipe and its outside diameter. The coupling should fit the pipe properly, and the pipe groove should match the coupling. This helps create a strong and secure connection.

• Check Pipe Compatibility: Next, check the pipe material, wall thickness, and groove size. These should match the requirements of the FireLock EZ Style 009N. This makes sure the coupling fits the pipe correctly and works as expected.

• Check the Working Pressure: Also, check how much pressure the fire protection system needs to handle. Then, compare it with the coupling’s pressure rating. The selected coupling should be able to handle the pressure of the system safely.

• Select the Correct Gasket: The gasket helps seal the pipe connection and helps stop water or air from leaking. So, choose a gasket that suits the system’s service, temperature, and working conditions.

• Confirm the Application: Finally, check whether a rigid coupling is right for the pipe section. The Style 009N keeps the pipes firmly connected and limits their movement, which makes it suitable for applications where a stable pipe connection is needed.

• Get Technical Guidance When Needed: Sometimes, choosing the right coupling can be confusing, especially for large projects. In that case, Airmep Sales Corp. can provide technical guidance and help you choose a suitable Style 009N based on your pipe and system requirements.

Conclusion

The Victaulic FireLock EZ Style 009N is a strong and reliable choice for fire protection piping systems. Its Installation-Ready design, rigid connection, different sizes, and suitable pressure ratings make pipe joining simple and secure. Therefore, choosing the right size, gasket, pressure rating, and application is important for good system performance.

Airmep Sales Corp. supplies genuine Victaulic couplings, fittings, valves, and other fire protection products for commercial and industrial projects. Our company also provides technical consultation, product selection help, installation support, maintenance, and after-sales service. Moreover, we focus on good-quality and durable products while offering reasonable prices, which helps customers find trusted fire protection solutions that suit their project needs.

Also Read: Victaulic Wet vs Dry Pipe Sprinkler Systems: Key Differences, Applications & Benefits
